Finished standard mesh sheets
From 100 pcs
Order per size, existing material grade and edge finish.
Images show the listed product configuration. Confirm the final specification before ordering.
Baking Paper & Liners
PTFE Mesh Baking Mats for Oven Trays
PTFE-coated fiberglass baking mesh provides a release surface with open gaps for airflow below the food. It is supplied as finished tray liners or material for cut-sheet conversion.
- MOQ
- Planning MOQ from 100 pcs; customization minimums listed below
- Samples
- Yes - US$20-35 stock mesh sample plus courier; custom aperture or pack samples quoted after review
- Lead time
- Schedule quoted after specification, sample and packaging approval
- Material
- PTFE-coated mesh substrate
- Sizes
- 40 × 33 cm; 45 × 35 cm; 50 × 40 cm; 60 × 40 cm; 69 × 49.5 cm
Product overview
About this product
Select the required configuration from the SKU table. Check the finished size against the usable tray, basket or worktop dimensions. Reference weights and packing data apply only to the listed format. Specify footprint, opening and edge finish before selecting a mesh grade. Sheet thicknesses such as 0.12 mm do not define an open-mesh construction; the coated yarn and weave set the finished mesh profile.
PTFE-coated fiberglass
Fiberglass provides the supporting fabric; PTFE forms the release coating.

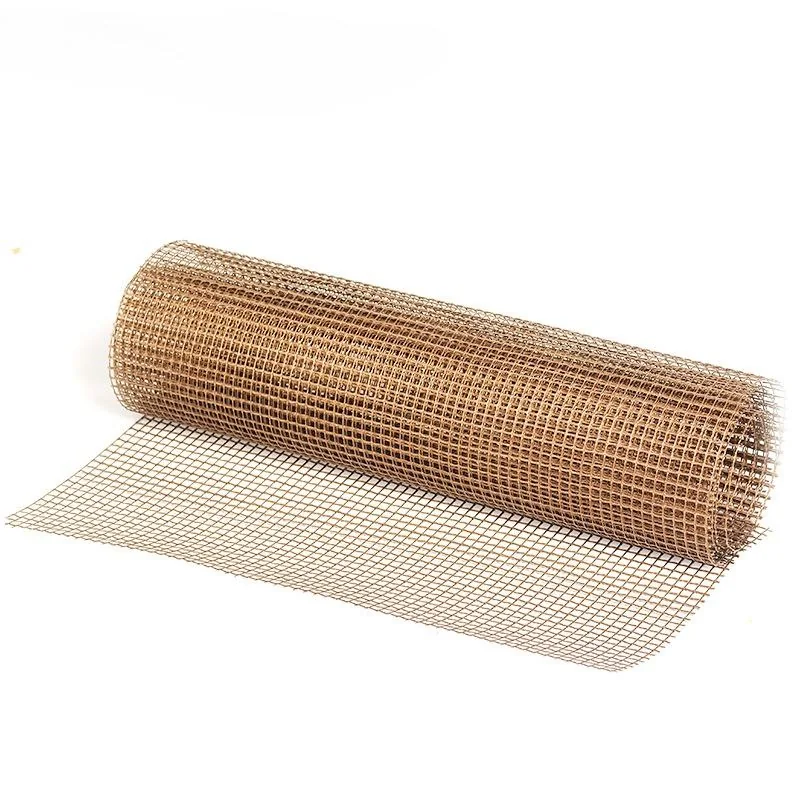

Sheets and material rolls
Finished sheets and raw or slit rolls have different quantity units.
Separate conversion scope
Cutting, edge finishing and retail packing are priced against the specified material.
Specifications
Materials, sizes & formats
- Material
- PTFE-coated mesh substrate
- Food-contact status
- Food-contact grade and documents specified with the order
- Temperature range
- Selected material grade and approved oven-use specification
- Thickness options
- Standard; extra thick — millimetre thickness confirmed for the selected grade
- Size options
- 40 × 33 cm; 45 × 35 cm; 50 × 40 cm; 60 × 40 cm; 69 × 49.5 cm
- Color options
- Black; Coffee
- Surface type
- Open mesh with PTFE coating
- Mesh type
- Open mesh; aperture confirmed for the selected grade
- Shape options
- Rectangle
- Supply form
- Single piece; bulk carton; retail set
Standard range
Standard SKU specifications
Choose the SKU by its complete size, construction, color and pack configuration. Each SKU identifies one listed configuration.
| SKU | Size (cm) | Color | Edge finish | Thickness grade |
|---|---|---|---|---|
| BWL-PMM-101-001 | 40 × 33 | Black | Unbound | Standard |
| BWL-PMM-101-002 | 40 × 33 | Coffee | Unbound | Standard |
| BWL-PMM-101-003 | 45 × 35 | Black | Unbound | Standard |
| BWL-PMM-101-004 | 50 × 40 | Black | Unbound | Standard |
| BWL-PMM-101-005 | 60 × 40 | Black | Unbound | Standard |
| BWL-PMM-101-006 | 60 × 40 | Coffee | Unbound | Standard |
| BWL-PMM-101-007 | 60 × 40 | Black | Unbound | Extra thick |
| BWL-PMM-101-008 | 69 × 49.5 | Black | Unbound | Extra thick |
| BWL-PMM-101-009 | 40 × 33 | Black | Bound | Standard |
Standard specifications, not live inventory. Pack and carton counts are packing references, not MOQ. Availability and final order terms are confirmed on quotation.
Request pricing for your selected format →Branding & product options
Cutting, finishing & private-label options
Cutting an existing material is a separate route from producing a new weave, coating or color. Keep the finished-liner quantity and raw-material area visible in the order.
| Option | Availability | MOQ guidance | What to specify |
|---|---|---|---|
| Rectangular cut / rounded corners | Available | From 100 pcs | Provide finished length, width and corner radius. |
| Oval / special outline | Available | From 300–500 pcs | Provide a dimensioned drawing; tooling is itemized where required. |
| Bound or reinforced edge | Available | From 500 pcs | Specify edge material, width and whether the liner must remain flat. |
| Roll width / slit roll | Available | From 10 m² of stock material | Specify width in metres, length in metres and the number of rolls. |
| New mesh / coating / special color | Material development | From 100 m² | New aperture or coating production is quoted by area rather than a loose piece count. |
| Brand label / printed retail pack | Available | From 3,000 printed packs | Use packaging labels for branding and specify the number of liners per set. |
Approve the product sample, print proof and final packaging specification before bulk production.
Discuss a custom supply project →Order planning
Minimum order quantities
Use these starting quantities to plan your inquiry. Final minimums are confirmed in the quotation for your chosen configuration.
Stock mesh rolls / slitting
From 10 m²
Area equals width × length; cutting loss is quoted separately.
New mesh or coating specification
From 100 m²
Material production and finished conversion are separate quotation items.
Bound-edge finished liners
From 500 pcs
Include perimeter construction in the drawing.
Printed retail packaging
From 3,000 packs
Define one selling set and the number of pieces it contains.
The quantities below are project-planning starting points. The quotation records the minimum by size, material, color, artwork and selling pack; combining items in a shipment does not combine their production minimums.
Send your configuration and order quantity →Plan your order
Customization & purchasing details
Open the details you need for your buying brief.
Use & care
- Keep PTFE mesh away from direct flame and heating elements; follow the selected grade’s temperature limit.
- Use the mesh on a supporting tray or grate and keep the required ventilation clear.
- Do not fold sharply or scrape with metal tools; stop using material with damaged coating or exposed glass strands.
Packaging, samples & delivery
Packaging
Protective sleeves or bulk cartons for sheets; core and protective wrap for rolls. Retail packaging is specified by selling unit.
- Stock notes
- Standard specifications, not live inventory. Pack and carton counts are packing references, not MOQ. Availability and final order terms are confirmed on quotation.
- Samples
- Yes - US$20-35 stock mesh sample plus courier; custom aperture or pack samples quoted after review
- Sample lead time
- Quoted for the selected stock or development sample
- Production lead time
- Schedule quoted after specification, sample and packaging approval
Product & compliance documentation
Food-contact status: Food-contact grade and documents specified with the order
- Product specification
- Food-contact document scope for the selected material and destination market
Food-contact document scope and operating temperature are agreed for the selected material, construction and destination market before order release.
From sample to bulk order
Send requirements
Share the product reference, quantity and destination.
Confirm product & customization
Review the product configuration and recorded options.
Sample / artwork review
Confirm the sample route or artwork requirements where applicable.
Sample approval
Approve the selected product and packing specification.
Bulk production
Production follows the confirmed order specification.
Inspection & packing
Arrange packing against the approved product and pack brief.
Shipment
Shipping details are confirmed after the final product and packaging specification.
Product questions
Why does mesh need its own thickness specification?
An open mesh uses coated strands and a woven profile. A gauge quoted for continuous PTFE fabric cannot be transferred to the mesh without measuring the selected grade.
What is the MOQ for PTFE mesh baking mats for oven trays?
Use 100 pcs as the starting planning quantity for the standard format or material route. Printing, custom color, new construction and retail packaging have their own minimums shown above.
What is included in a private-label order?
Define the finished product, artwork, pack contents, barcode and care text. The approved sample and pack proof fix the supplied selling unit.
How are food-contact documents specified?
State the destination market and intended food-contact use. The document scope must match the selected material and finished construction.
Request a quote
Send your product brief.
Tell us the product, estimated quantity, required customization, packaging and destination market.
What to include in your inquiry
- Product / reference
- Quantity
- Size
- Color
- Logo
- Packaging
- Destination country
- Target delivery date
- Finished size / drawing
- Material grade / mesh aperture
- Quantity and unit per configuration
- Artwork / color reference
- Pieces per selling unit
- Packaging and destination market
- Required arrival date
Request a quote
Build a product range
Source related baking supplies together.
These items can be discussed together for coordinated color, branding, packaging or consolidated sourcing. Final product combinations and MOQ are confirmed after specification review.
